Orange Pi One

Hardware specification:

• CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
• GPU Mali400MP2 GPU @600MHz
• Supports OpenGL ES 2.0
• Memory (SDRAM)
• 512MB or 1GB DDR3 (shared with GPU) (refer to product title)
• Onboard Storage
• TF card (Max. 32GB) / MMC card slot
• Onboard Network
• 10/100M Ethernet RJ45
• Video Input
• A CSI input connector Camera:
• Supports 8-bit YUV422 CMOS sensor interface
• Supports CCIR656 protocol for NTSC and PAL
• Supports SM pixel camera sensor
• Supports video capture solution up to 1080p@30fps
• Video Outputs
• Supports HDMI output with HDCP
• Supports HDMI CEC
• Supports HDMI 30 function
• Supports simultaneous output of HDMI
• Power Source
• DC input can supply power, but USB OTG input don’t supply power
• USB 2.0 Ports
• Only One USB 2.0 HOST, one USB 2.0 OTG
• Buttons
• Power Button(SW4)
• Low-level peripherals
• 40 Pins Header
• LED
• Power led & Status led
• Key
• POWER
• Supported OS
• Android Ubuntu, Debian Image

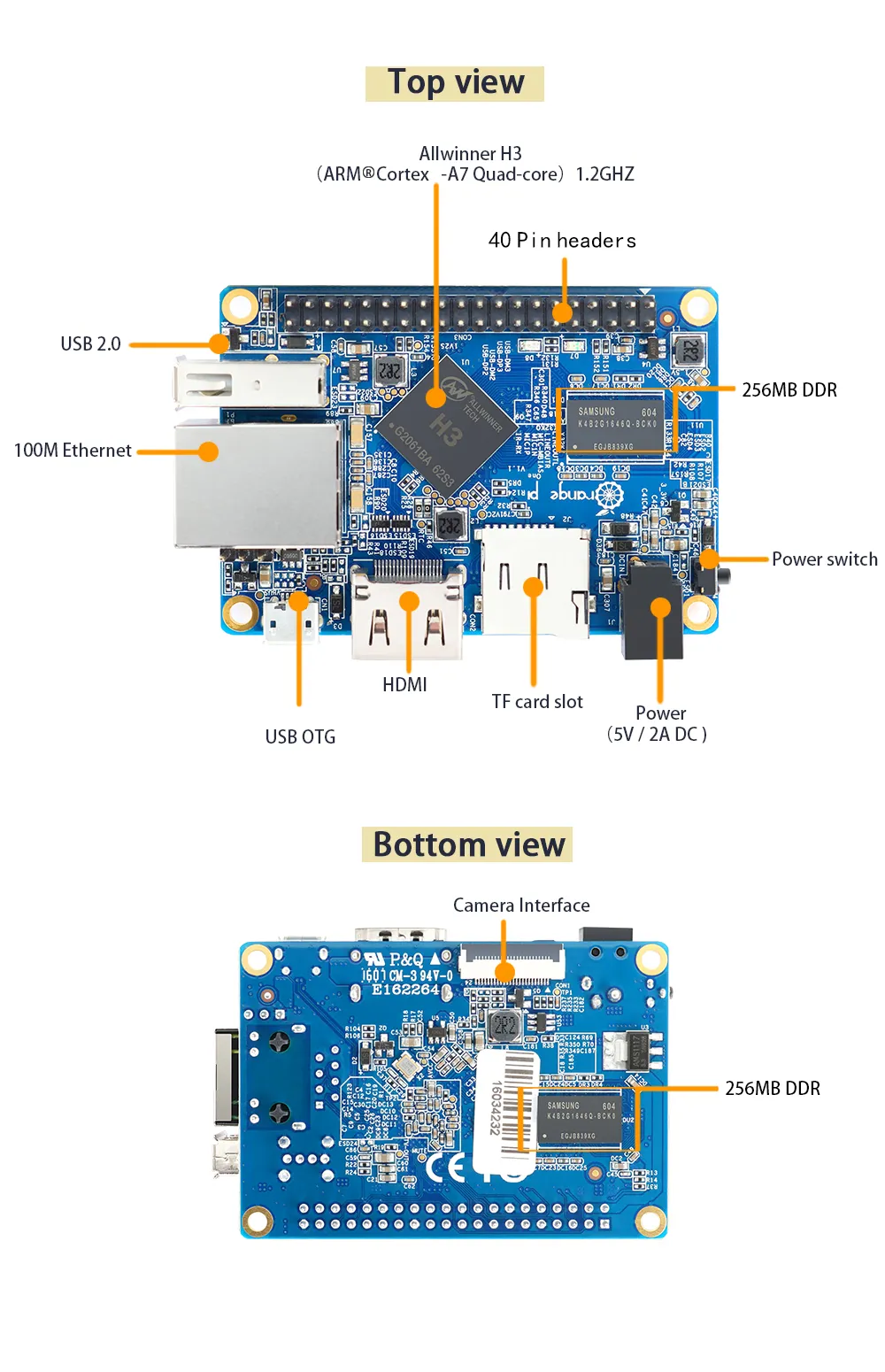

• Interface definition
• Product size 69 mm × 48mm

• Weight 36g
